Stonewall, Tivoli, NY

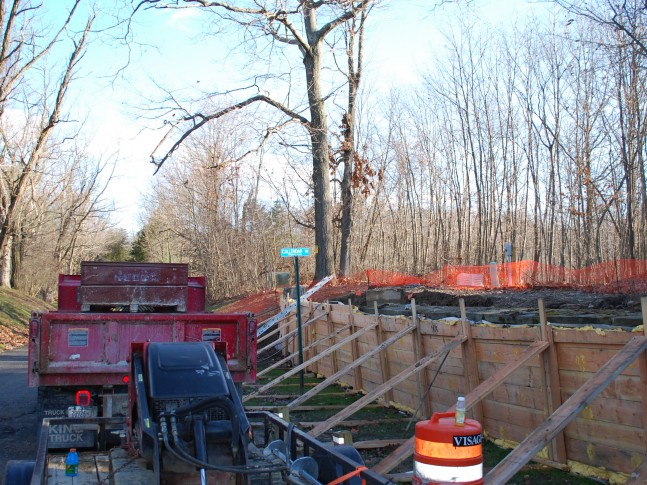

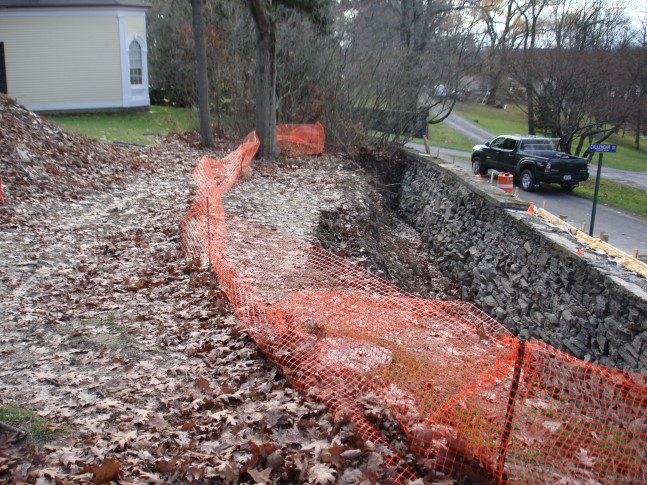

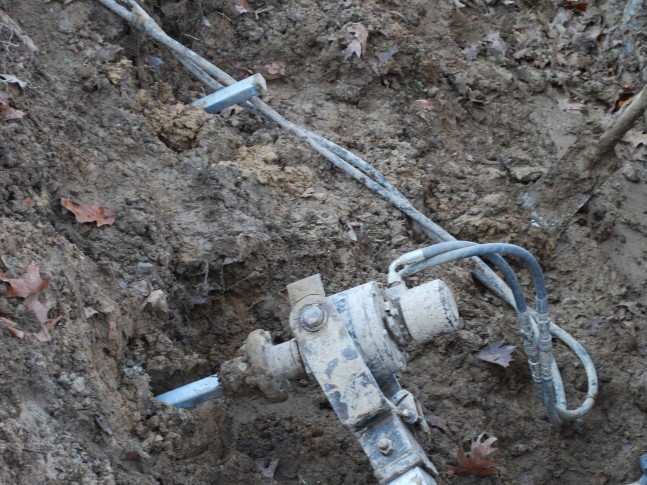

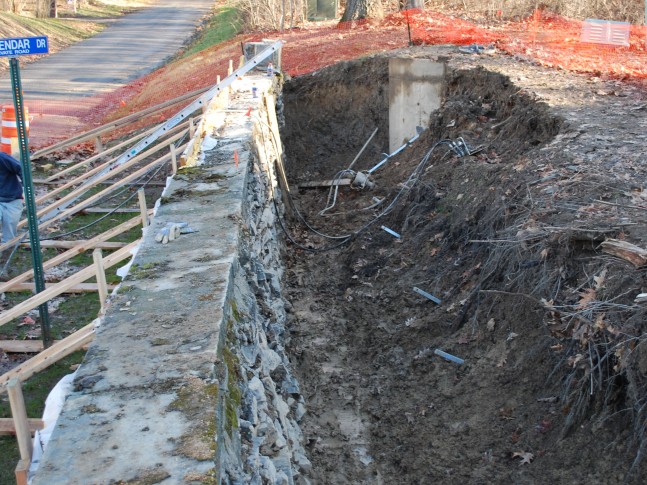

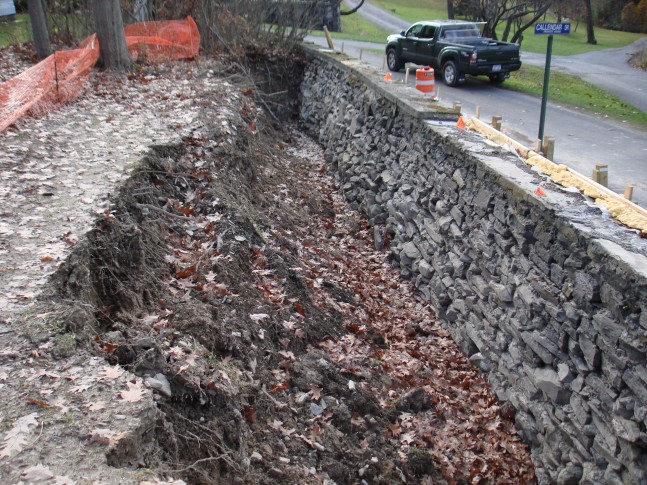

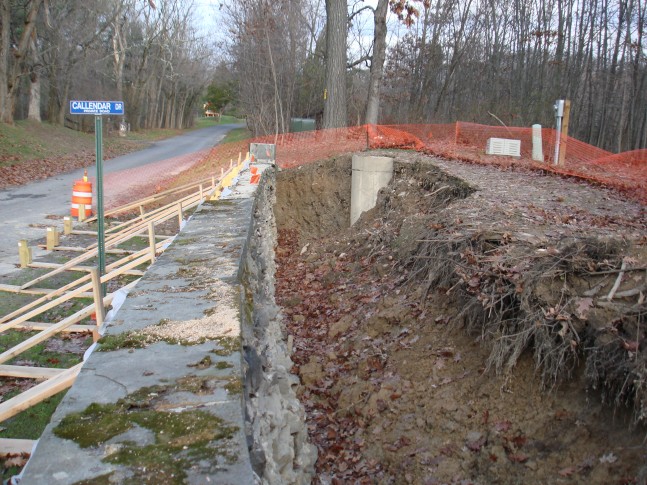

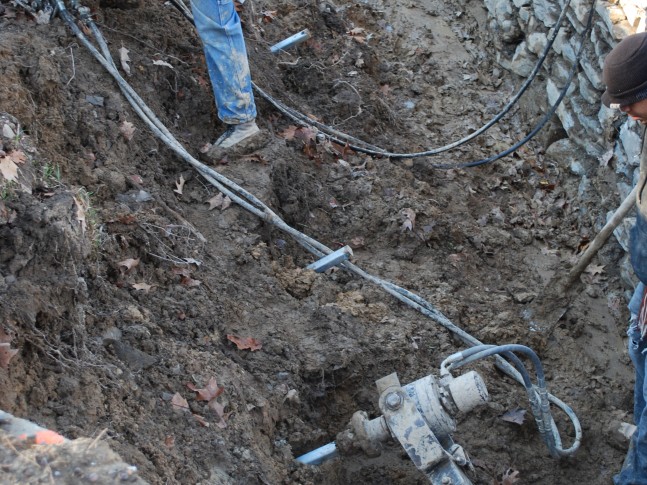

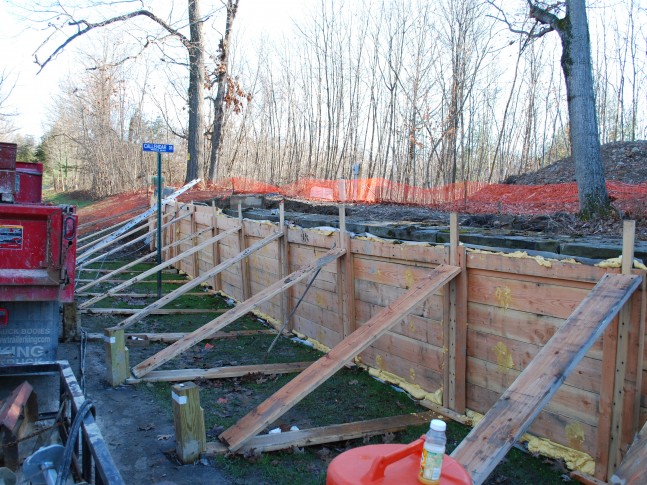

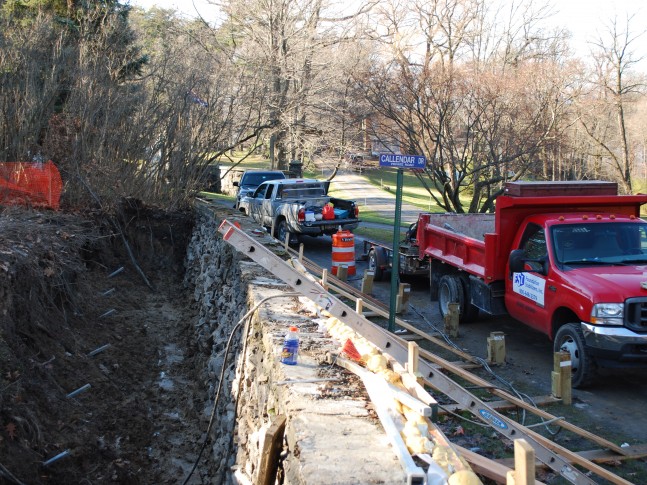

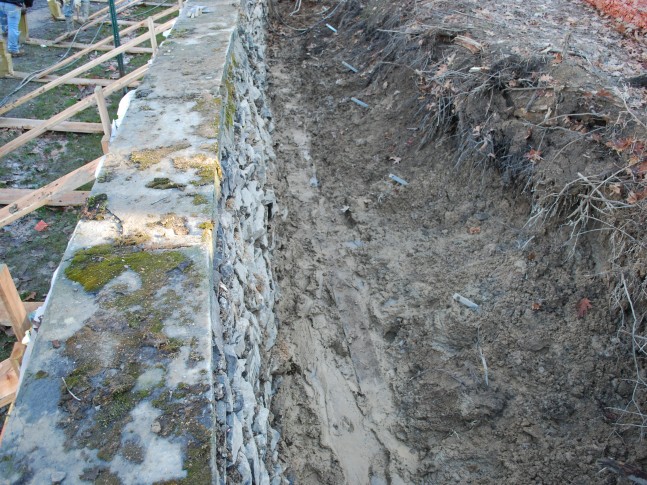

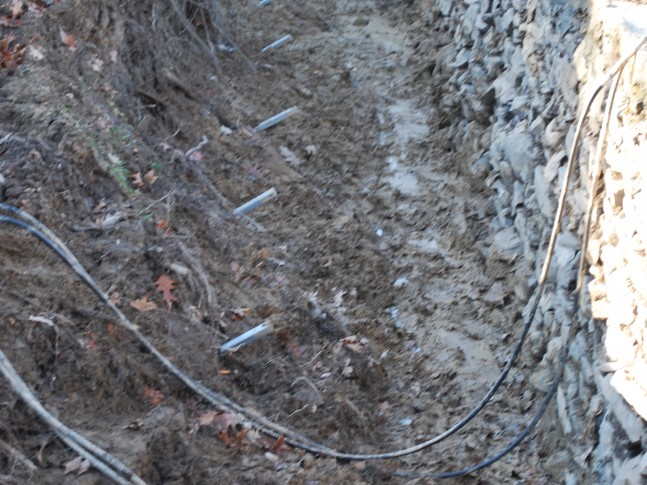

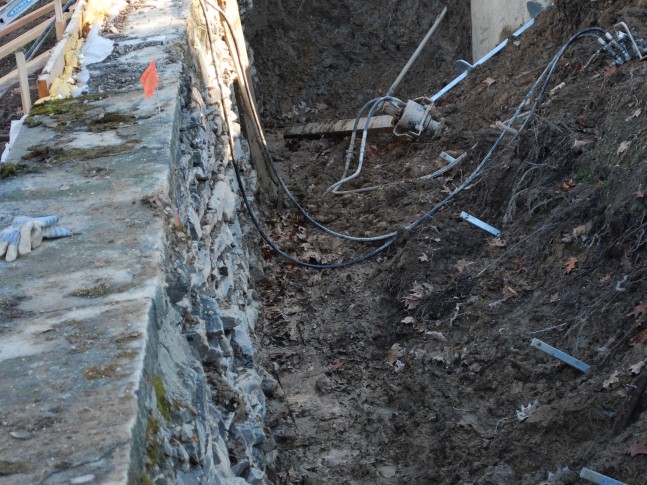

A historic stonewall had leaned outward causing damage. Poor drainage and clay backfill led the wall to failure over time. The wall was temporarily shored and stabilized. A permanent anchor was needed to pin the wall back and prevent any further movement. Limited access required the use of hand-held equipment. Anchors were attached to a one inch threaded rod adapter.
Project Name and Location:
Stone Wall Stabilization, Tivoli, NY
Stone Wall Stabilization, Tivoli, NY
Project Date:
December 2008
December 2008
Project Type:
Stone Wall Stabilization
Stone Wall Stabilization
Piles Specification:
10 helical tieback anchors at 15 degrees. An 8"x 10"x 12" was installed to 15 kips.
10 helical tieback anchors at 15 degrees. An 8"x 10"x 12" was installed to 15 kips.
Soil & Embedment Depth:
15 feet.
15 feet.
Project Timeline:
3 Days
3 Days
